Description

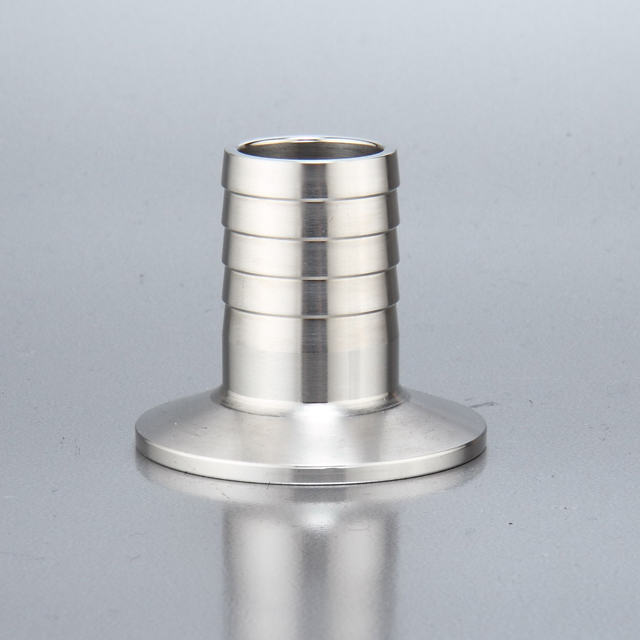

14MPHR High Purity Clamp Rubber Hose Barb Adapter

Part Number

M14MPHR

Materials

304/316L Stainless Steel

Finishing

Polished #3 #5 #7 electropolish available

Tube OD

½" x ⅛" through 8" x 8"

Minimum order

100pcs each size

Specifications

3A Sanitary Standard for Sanitary Fittings

Application

Food process, Milk process, Beer brewage, Biopharmacy

Packaging

Five layers of double corrugated boxes,

Shipment

Air shipment, Ocean shipment, DHL/UPS available

Payment

T/T, L/C, West Union, Paypal

3A Sanitary Standard

Tube OD

A

B

Part Number 304/316L

½" x ⅛"

1.250

0.125

M14MPHR-S050013/T050013

½" x ¼"

1.500

0.250

M14MPHR-S050025/T050025

½" x ⅜"

1.500

0.375

M14MPHR-S050038/T050038

½" x ½"

1.500

0.500

M14MPHR-S050050/T050050

½" x ¾"

1.500

0.750

M14MPHR-S050075/T050075

¾" x ⅛"

1.500

0.125

M14MPHR-S075013/T075013

¾" x ¼"

1.500

0.250

M14MPHR-S075025/T075025

¾" x ⅜"

1.500

0.375

M14MPHR-S075038/T075038

¾" x ½"

1.500

0.500

M14MPHR-S075050/T075050

¾" x ¾"

1.500

0.750

M14MPHR-S075075/T075075

1" x 1"

1.688

1.000

M14MPHR-S100100/T100100

1" x ⅜"

1.500

0.375

M14MPHR-S100038/T100038

1" x ½"

1.500

0.500

M14MPHR-S100050/T100050

1" x ¾"

1.688

0.750

M14MPHR-S100075/T100075

1½" x ⅛"

1.500

0.125

M14MPHR-S150013/T150013

1½" x ¼"

1.500

0.250

M14MPHR-S150025/T150025

1½" x ⅜"

1.500

0.375

M14MPHR-S150038/T150038

1½" x ½"

1.500

0.500

M14MPHR-S150050/T150050

1½" x ¾"

1.500

0.750

M14MPHR-S150075/T150075

1½" x 1"

1.688

1.000

M14MPHR-S150100/T150100

1½" x 1½"

1.688

1.500

M14MPHR-S150150/T150150

2" x 1½"

2.312

1.500

M14MPHR-S200150/T200150

2" x 2"

2.313

2.000

M14MPHR-S200200/T200200

2½" x 2½"

2.344

2.500

M14MPHR-S250250/T250250

3" x 3"

3.094

3.000

M14MPHR-S300300/T300300

4" x 4"

3.406

4.000

M14MPHR-S400400/T400400

6" x 6"

3.406

6.000

M14MPHR-S600600/T600600

8" x 8"

3.406

8.000

M14MPHR-S800800/T800800

All dimensions are shown in inches.
