Description

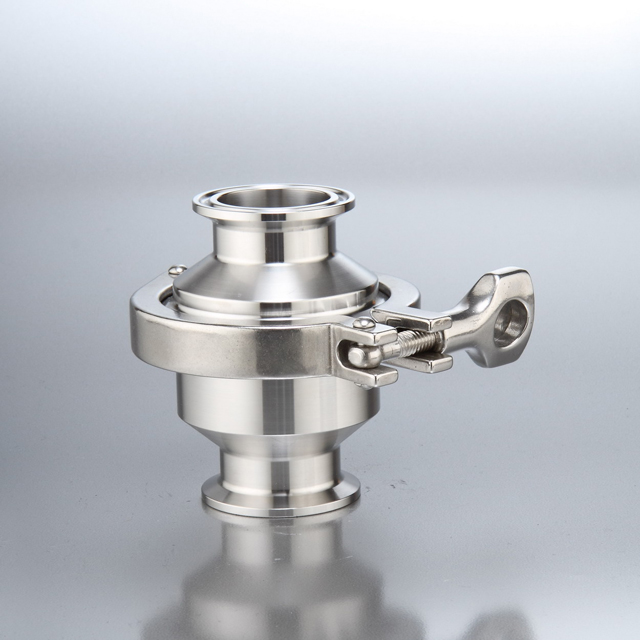

Sanitary Check Valves Clamp Ends (Non-Return Valves)

Part Number

M45CVCExxxT

Body Materials

316L Stainless Steel

Gasket and O-ring

Viton and EPDM in optional, meet FDA standard

Finishing

CNC processed surface (Outer: Ra ≤0.6μm Inner: Ra≤0.8μm)

Tube OD

1” through 6”

Minimum order

100 pcs each size

Design Principle

This Spring Loaded Check Valve is designed to be used when flow in both directions create a problem. Spring Loaded Check Valves open when pressure below the valve seat is greater then above the valve seat. Therefore when pressure equalizes, the valve closes.

Operating Pressure

145 PSI max.

Temperature Range

0 °F to 250 °F

Application

Food process, Milk process, Beer brewage, Biopharmacy

Packaging

Five layers of double corrugated boxes,

Shipment

Air shipment, Ocean shipment, DHL/UPS available

Payment

T/T, L/C,West Union, Paypal

3A Sanitary Standard

Tube OD

A

B

OAL

Cracking(PSI)

Part Number316L

1"

0.870

1.688

4.125

1.682

M45CVCE100T

1½"

1.370

1.688

4.563

0.678

M45CVCE150T

2"

1.870

2.175

5.062

0.364

M45CVCE200T

2½"

2.370

2.770

5.375

0.227

M45CVCE250T

3"

2.870

3.240

6.125

0.618

M45CVCE300T

4"

3.834

4.034

8.188

0.346

M45CVCE400T

6"

5.782

6.400

6.250

0.158

M45CVCE600T

All dimensions are shown in inches.
